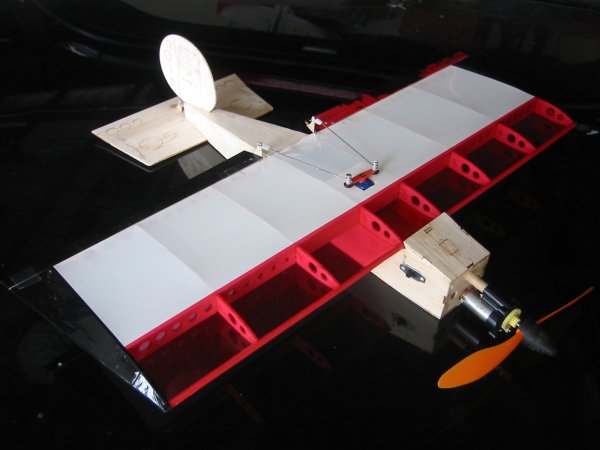

Mark III Before Wheels Were Added. Mk1 Wing.
After diddlebugging, I started to wonder just how nifty these mini
balsa planes could get. A little web research led me to
Radical RC and the Micro Stick.
Intended for a GWS IPS DD, I first tried to fly it with an LPS 11-gram motor. It did fly, but not well. For Mk2, I used the specified motor, which flew okay and was a lot of fun, but requires a bit of run-up to behave well -- which also means there's almost no immediate power to recover from boo-boos. Further, the magnetic wing attachment is a little tricky, and I had the wing pop off a few times.Here's a shot from the Mk1 trials:

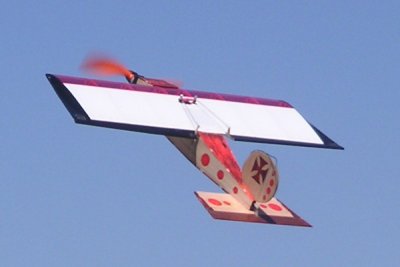

Mark III uses a 4.8v LPS A geared drive with a 2-cell Lipo and a 5040 prop. Pretty fast, very thrusty, great response. A fun, fast aerobat that can fly in any size field and is very portable. I took it to LA for xmas in a modified shoebox. It can be fitted out with a rudder but I'm flying aileron/elevator only.
After a while I added rubber-band mounted front wheels so I could fly where there's no grass. I have since started to consider various brushless power plants to give it an insane degree of speed, but that will come in due time.
Back To Planes Index
Copyright 2005 by David Mark North
Action Photos by Akkana Peck
